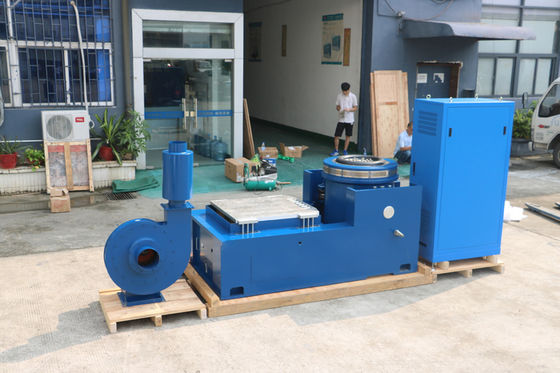

Precision Vibration Tester 10kN 8-Channel MIL-STD-810 Compliant

Precision Vibration Tester 10kN 8-Channel MIL-STD-810 Compliant

Marchio: PRECISION
Numero di modello: VTS-10
MOQ: 1
prezzo: $6000
Condizioni di pagamento: T/T
Capacità di approvvigionamento: 100/month
Informazione dettagliata
Place of Origin:
CHINA
Certificazione:
CE
Customized support:
OEM ODM
Sine force:
10kN
Random force:
10kN
Shock force:
20kN
Frequency range:
1-3000Hz
Displacement:
51mm
Velocity:
2.0
Table size:
500x500mm
Packaging Details:
Standard export packaging
Supply Ability:
100/month
Evidenziare:

10kN electrodynamic vibration tester

,

8-channel vibration test system

,

MIL-STD-810 compliant vibration tester

Descrizione di prodotto

Precision Vibration Testers with 8-Channel Controller MIL-STD-810, Method 514 Compliant

Our Precision Vibration Testers are engineered for unparalleled accuracy and control, featuring an advanced 8-channel vibration controller. This powerful combination is specifically designed to meet and exceed the rigorous requirements of MIL-STD-810, Method 514 (Vibration). By allowing for simultaneous multi-point vibration measurement and control, our system provides a comprehensive and auditable solution for evaluating the durability and performance of your products in the demanding environments they will face.



Key Features



  • MIL-STD-810, Method 514 Compliance: Fully configured to execute all the demanding vibration profiles and test procedures outlined in MIL-STD-810, Method 514. This includes tailoring to categories such as basic transportation, aircraft (fixed wing, rotary wing), and ground vehicles.

  • 8-Channel Vibration Control: The sophisticated controller supports up to eight channels for real-time data acquisition and control. This allows for simultaneous monitoring of multiple critical points on your test article, providing a more complete picture of its dynamic behavior.

  • High-Precision Electrodynamic Shaker: Utilizes advanced electrodynamic technology for accurate, repeatable, and controlled generation of complex vibration waveforms, including sine, random, shock, and mixed-mode tests.

  • Advanced Digital Control System: The powerful control software not only executes MIL-STD test sequences with precision but also allows for advanced analysis, including resonance searches, dwell times, and multi-axis simulations.

  • Comprehensive Multi-Point Data Acquisition: The 8-channel system captures a wealth of real-time data (acceleration, displacement, etc.) from multiple locations on the product, enabling in-depth analysis of structural responses, stress points, and potential failure modes.

  • Robust & Durable Construction: Built with industrial-grade components and a reinforced structure for continuous operation and long-term reliability in demanding test environments.

  • Customizable Test Fixtures: Our engineering team designs and manufactures application-specific fixtures to securely mount diverse military equipment, optimizing vibration transmission and ensuring test integrity.

  • Enhanced Safety Protocols: Incorporates multiple safety interlocks, emergency stops, and features vital for handling valuable and often sensitive test articles.



Applications



  • Aerospace & Defense: Qualification of avionics, missile components, ground support equipment, and ruggedized electronics for flight, ground vehicle, or shipboard environments, with multi-point monitoring.

  • Military Vehicle Components: Durability testing of components, sub-assemblies, and systems for tanks, armored vehicles, and tactical trucks.

  • Naval & Marine Systems: Vibration and shock testing of equipment intended for naval vessels, submarines, and maritime platforms.

  • Portable & Field Equipment: Reliability validation of ruggedized electronics, communication devices, and sensors for soldier-borne or field deployment.

  • Regulatory Compliance & Certification: Essential for obtaining necessary military certifications and clearances (e.g., MIL-STD-810) for market entry and deployment.

  • Research & Development: Advanced structural dynamics analysis and new product validation with detailed multi-point data.



Benefits



  • Unmatched Accuracy & Control: The 8-channel controller provides precise control and measurement, ensuring test results are both accurate and reliable for MIL-STD-810, Method 514 compliance.

  • Comprehensive Product Insight: Multi-point data acquisition allows for a deeper understanding of product behavior, helping to identify and address weaknesses that single-point testing might miss.

  • Accelerated Qualification: Streamlines the complex and lengthy MIL-STD testing process, significantly speeding up market entry for defense-related products.

  • Reduced Field Failures: Proactively identifies and mitigates potential failure points, guaranteeing robust performance in extreme operational and combat environments.

  • Auditable Data: Generates detailed, auditable reports with multi-channel data, essential for compliance documentation and root cause analysis.

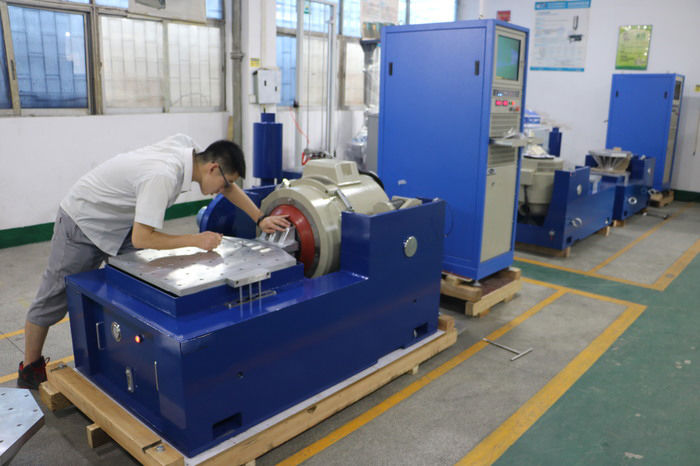

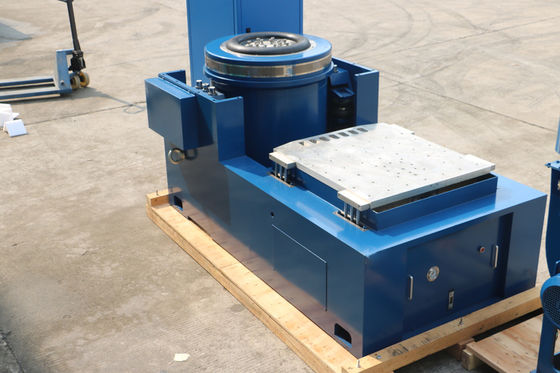

Precision Vibration Tester 10kN 8-Channel MIL-STD-810 Compliant 0Precision Vibration Tester 10kN 8-Channel MIL-STD-810 Compliant 1

Technical Specifications:



Rated Sine/ Random/ Shock Force 1,100 kgf/1.100 kgf/2200 kgf Armature Mass 13 kg
Frequency Range 5-3500 Hz Inserts Size (Standard) M10
Max./Continuous Displacement p-p 51 mm/51 mm Load Attachment Points (Standard) 25
Max. Velocity 2.0 m/s Natural Frequency-Thrust Axis <3Hz
Max.Sine/ Random Acceleration 85/60g Max. Vertical Load Support 300 kg
Armature Diameter 335 mm Stray field @152 mm above table ≤lmT (10 gauss)
Fundamental Resonance Frequency 3,000 Hz (nom) ±5% Dimension LxWxH 940 mmx715 mm* 780 mm
Allowable Armature Overturning Moment 300 Nm Weight (Uncrated) 1.000 kg



Ready to elevate your vibration testing with multi-point control and precision to meet MIL-STD-810, Method 514 standards? Contact our experts today to discuss your requirements for a Precision Vibration Tester with an 8-Channel Vibration Controller.
